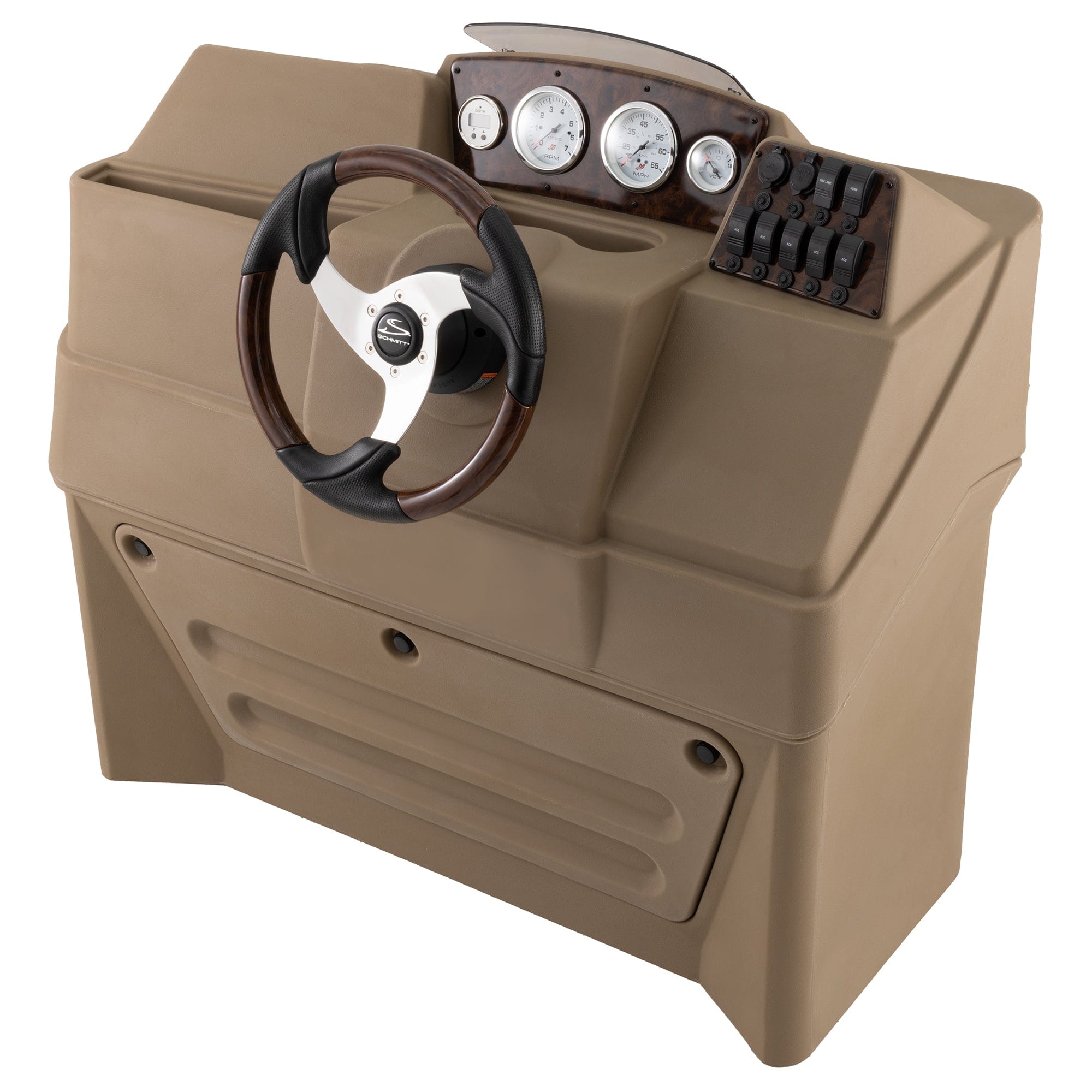

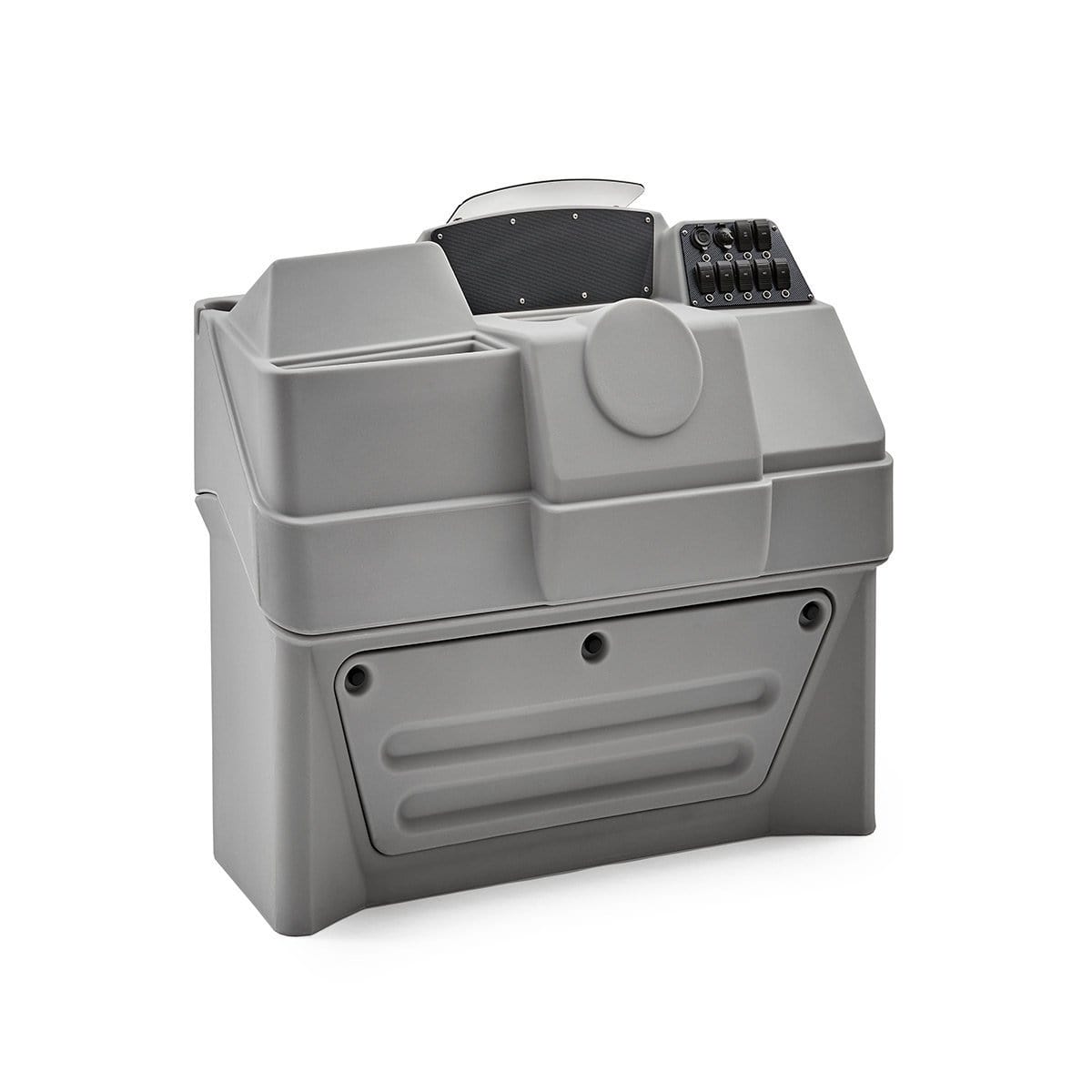

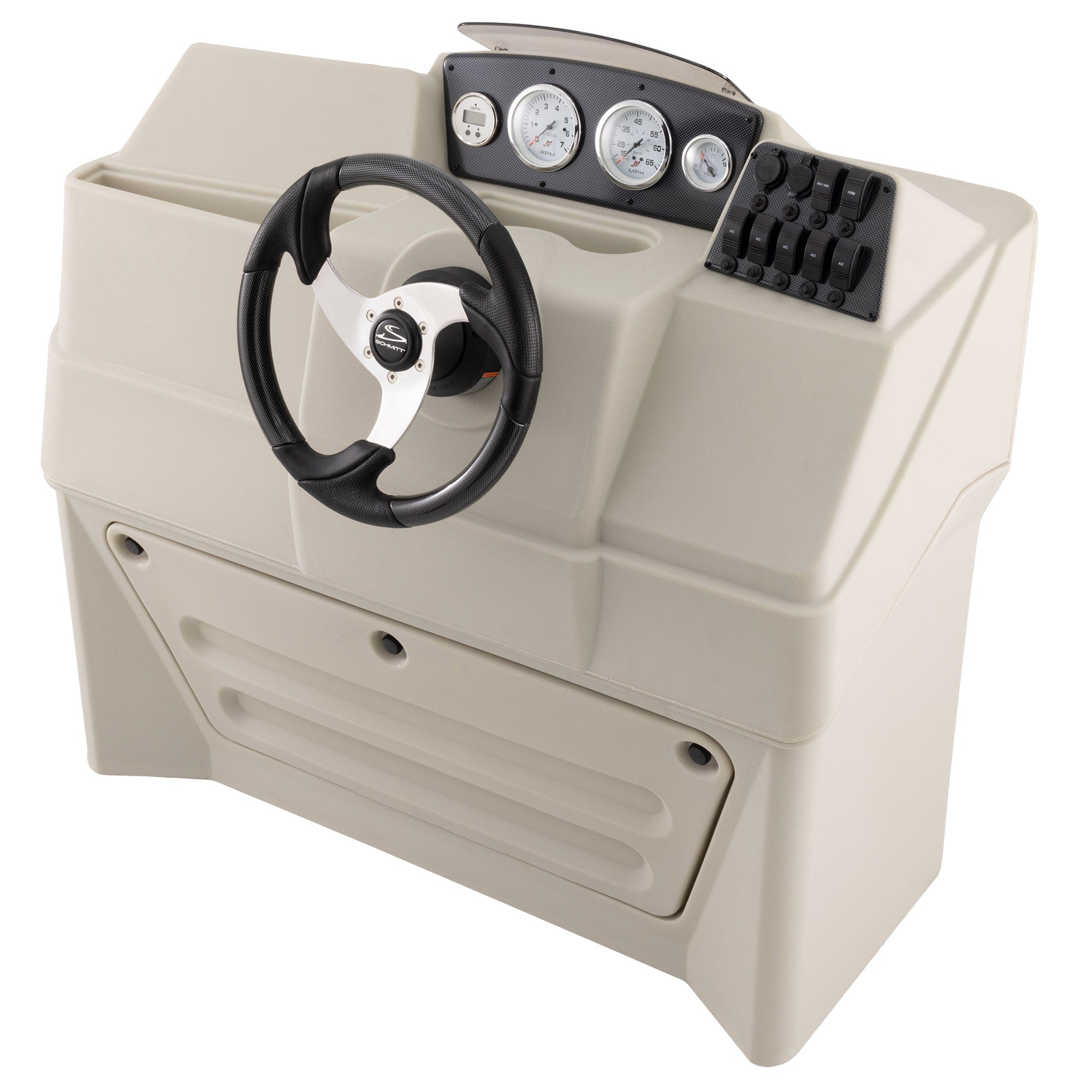

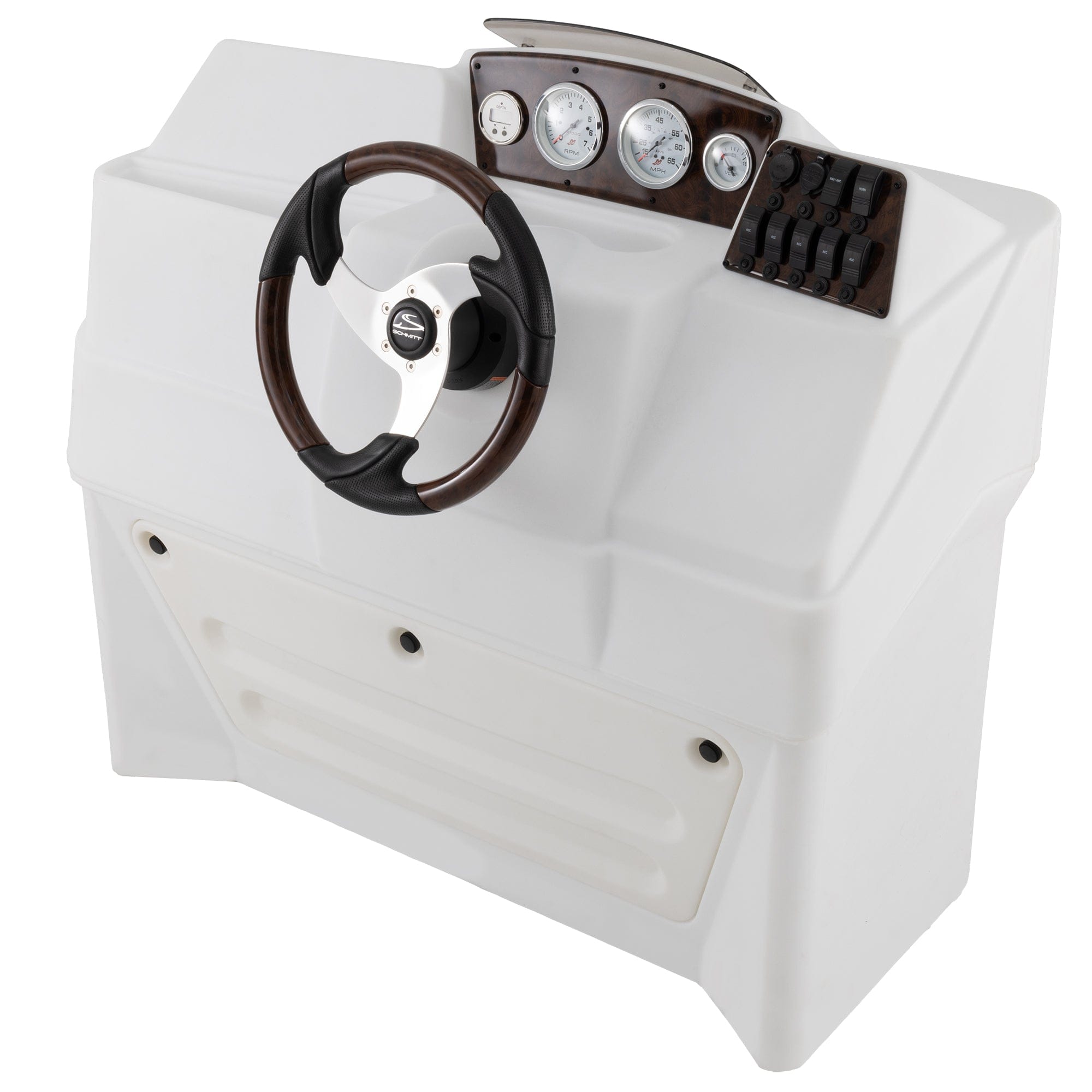

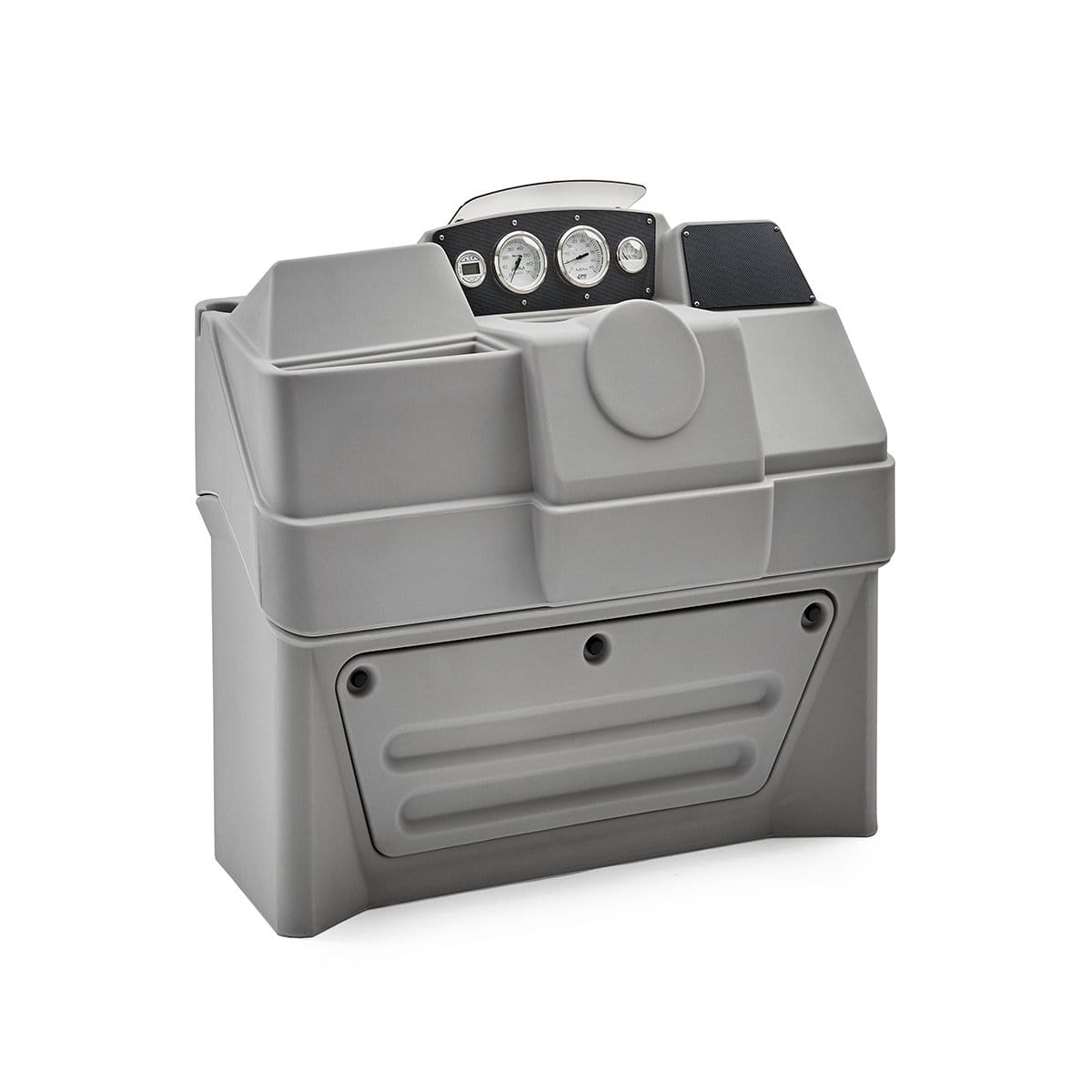

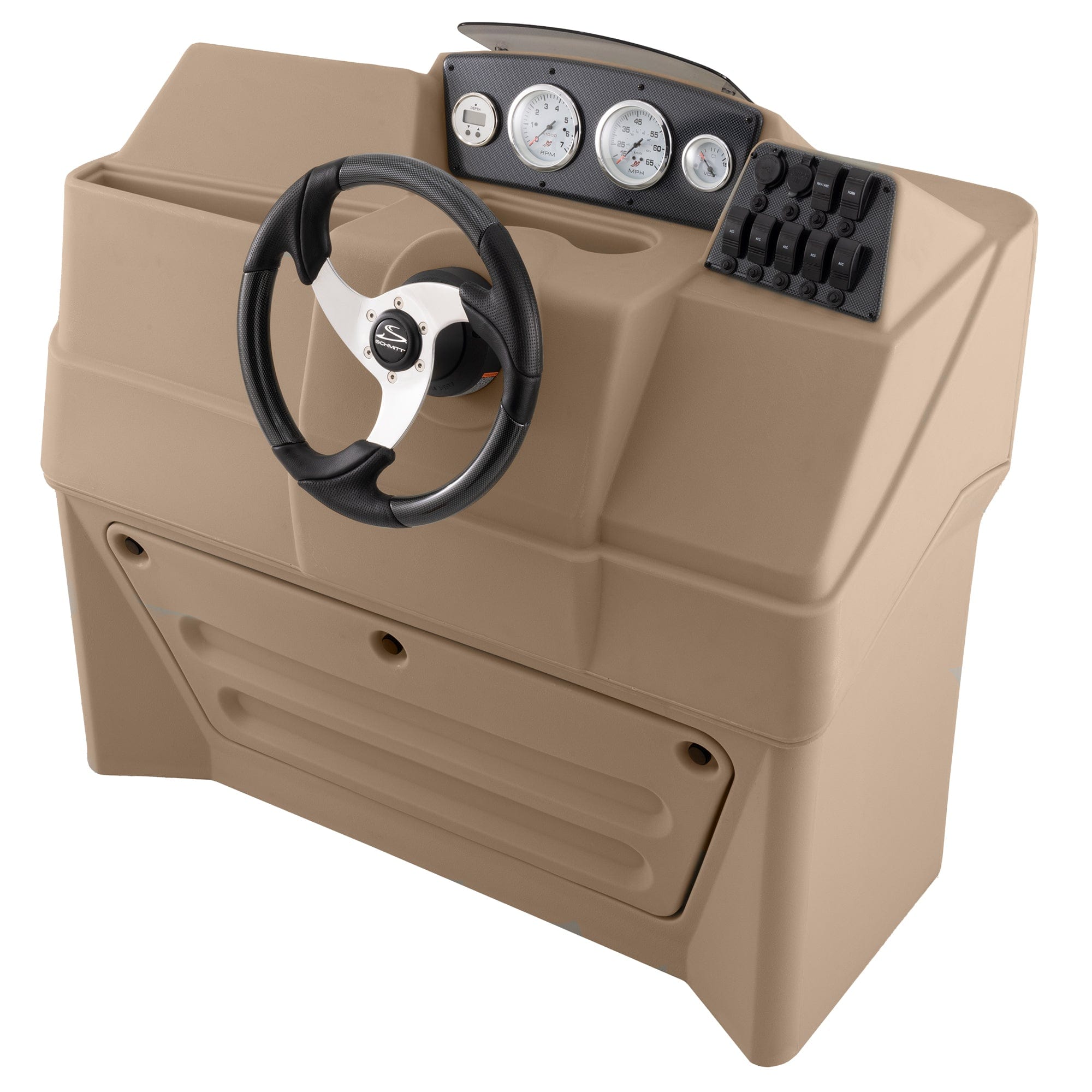

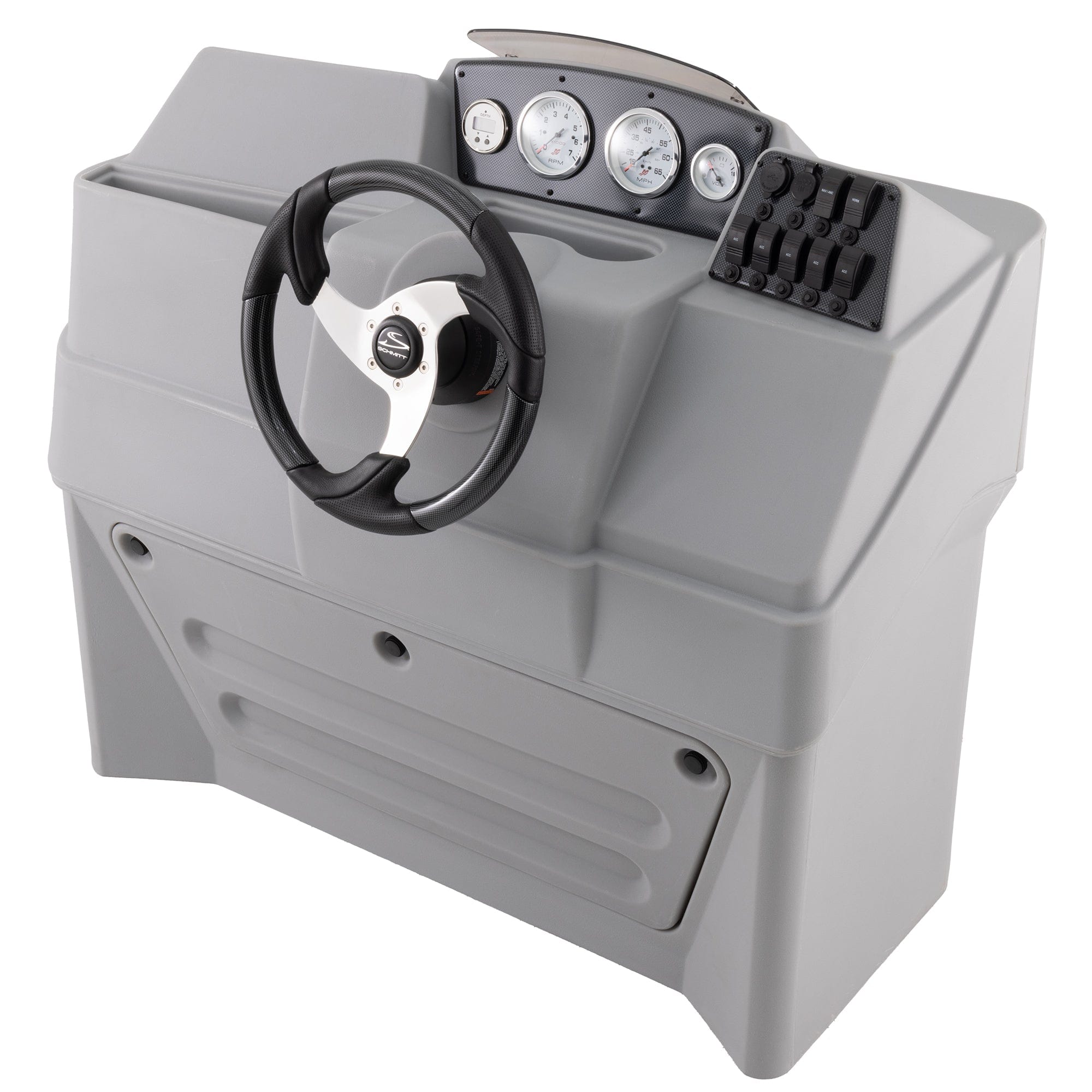

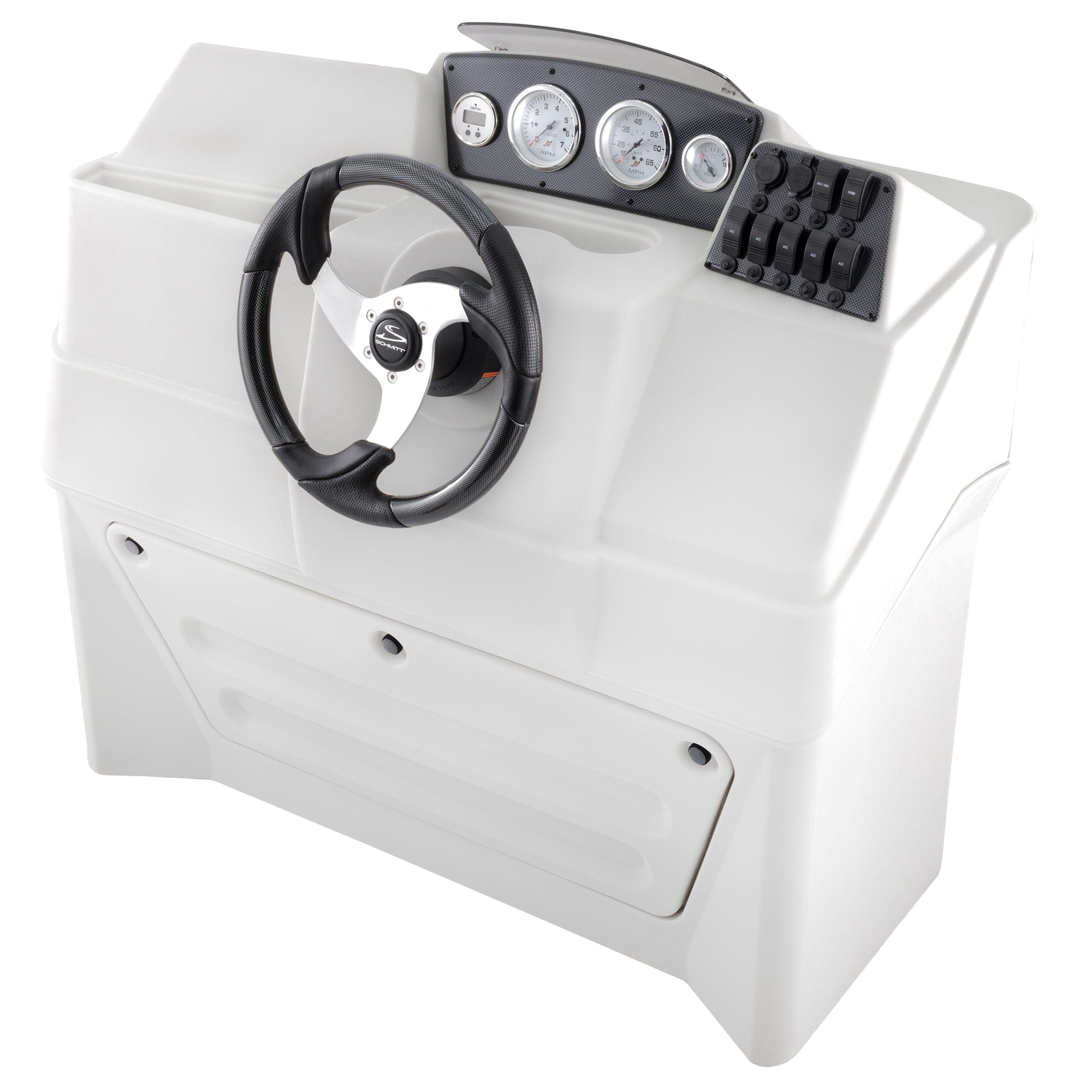

Premium Large Pontoon Console | Helm Package

Upgrade your boat with a brand new DeckMate console. Add the console accessories you need to make your renovation complete!

Additional options must be selected to be added to your console and will not come pre-installed.

Pontoon Boat Console Dimensions:

• Overall Console Width: 41"
• Overall Console Height: 38"
• Overall Console Depth: 21"
• Removable access panel under dash allows you to bolt down top after you have installed all your steering and electrical items
• 2 piece rotationally molded plastic captain stand makes installation easy

Instructions

Large Pontoon Console Assembly:

1. Take the 1/4-20 Stud Bolts and insert them in the T-Nut inserts located on the underside of the Large Helm Top. NOTE: Make sure you do not twist the stud bolts more than 2 - 3 full rotations.
2. Place the top of the top of the console on the base where the indent fits into the slots.
3. From the inside of the console, use the four (4) washers and four (4) wing nuts given to fasten the Large Helm Top to the Large Helm Base.
4. Once the Helm Top and the Helm Base are tightened, place the access door on with the three (3) Black Knobs to secure the door to the base.

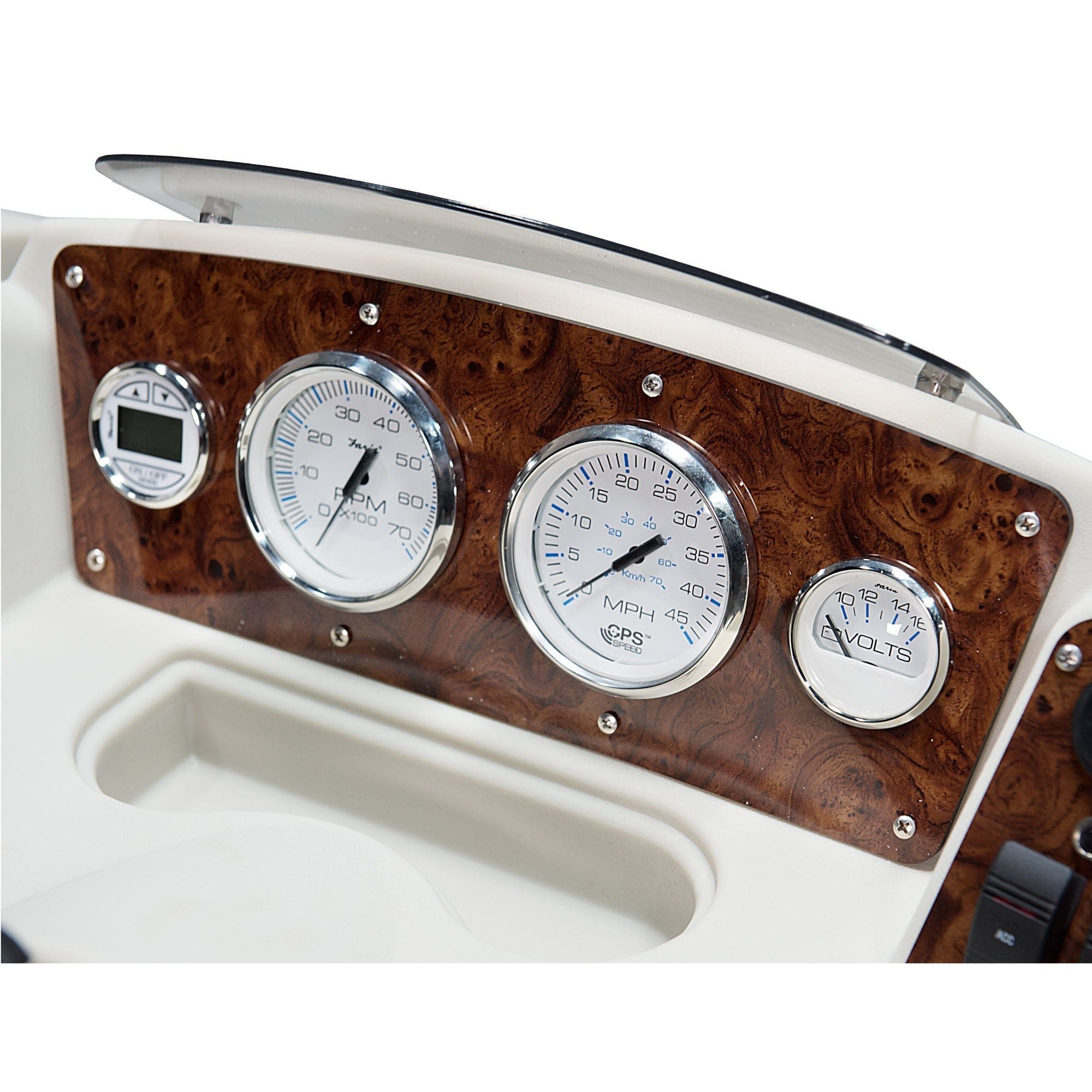

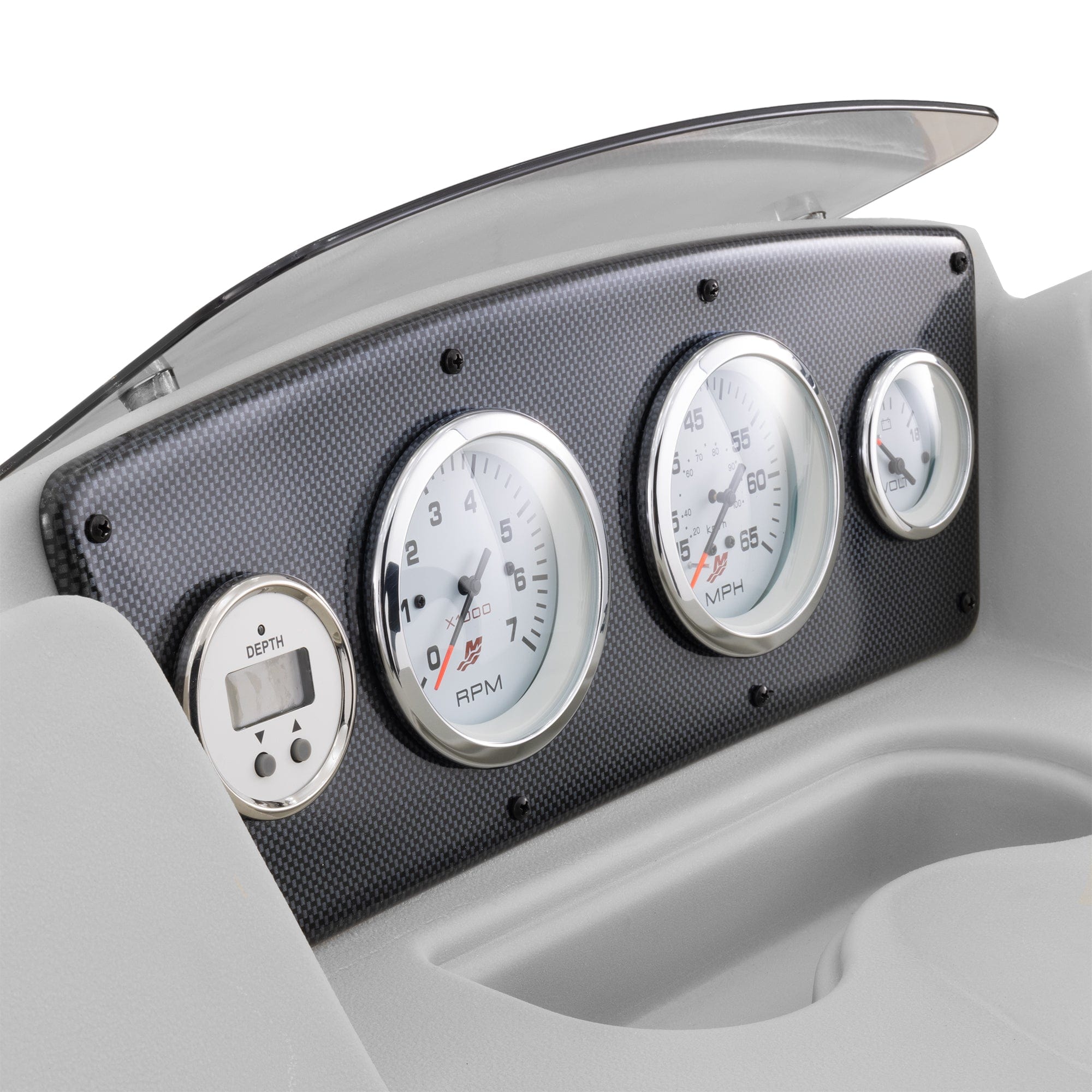

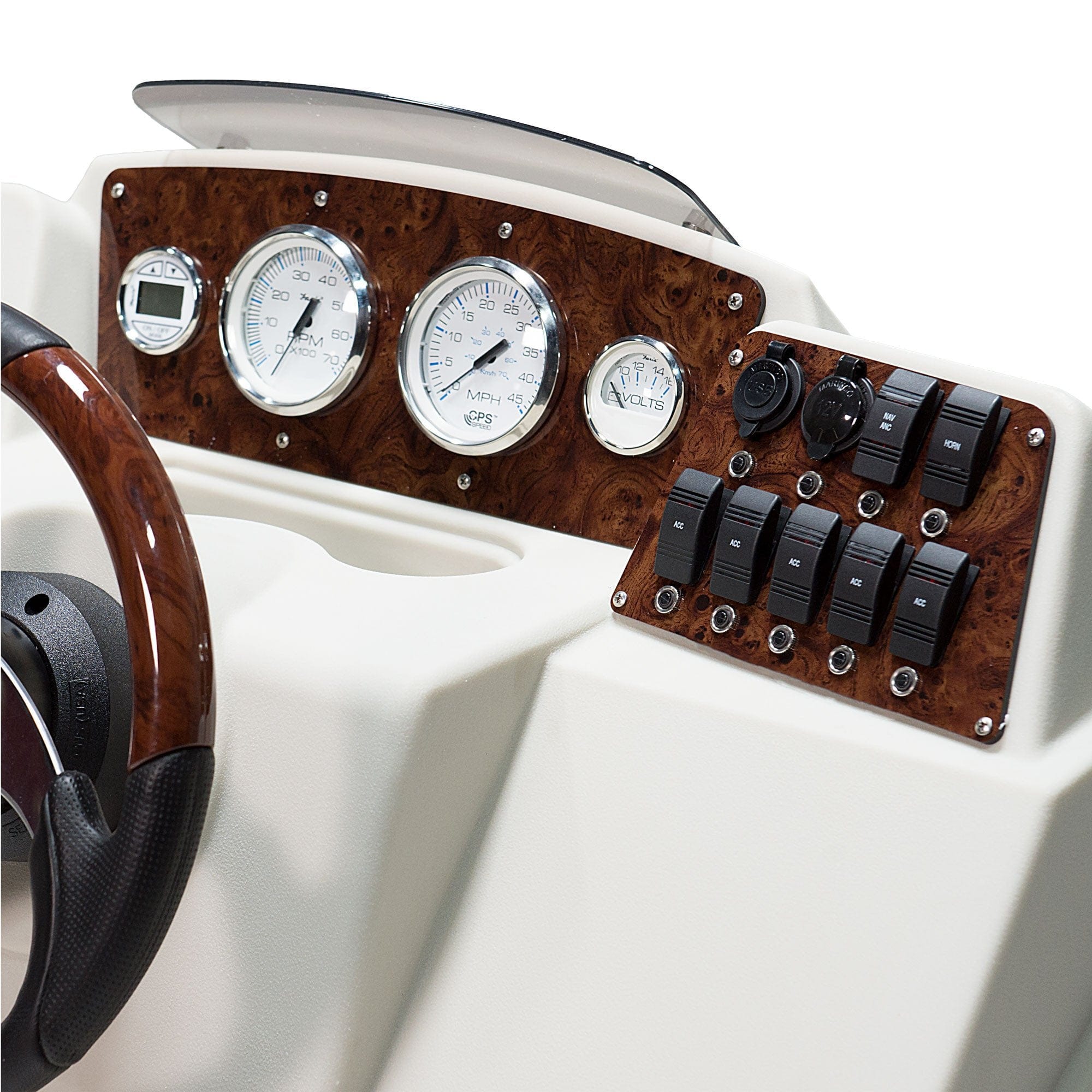

Gauge Panel Instructions:
