Deluxe Large Pontoon Console (Deck Designer)

DeckMate Deluxe Large Pontoon Console

Upgrade your pontoon boat console. Match our Classic, Premium, & Luxury DeckMate® seats perfectly and personalize your helm with our panel and electrical options. Store your boating items in the easily-accessible side storage unit or larger items in the door-accessible storage.

• No wood! All of our pontoon furniture frames are plastic. We use rotationally molded plastic bases.
• High-grade stainless steel hardware and staples are used on our pontoon consoles, along with t-nuts, which are inserted into the plastic bases to secure each pontoon seat cushion.

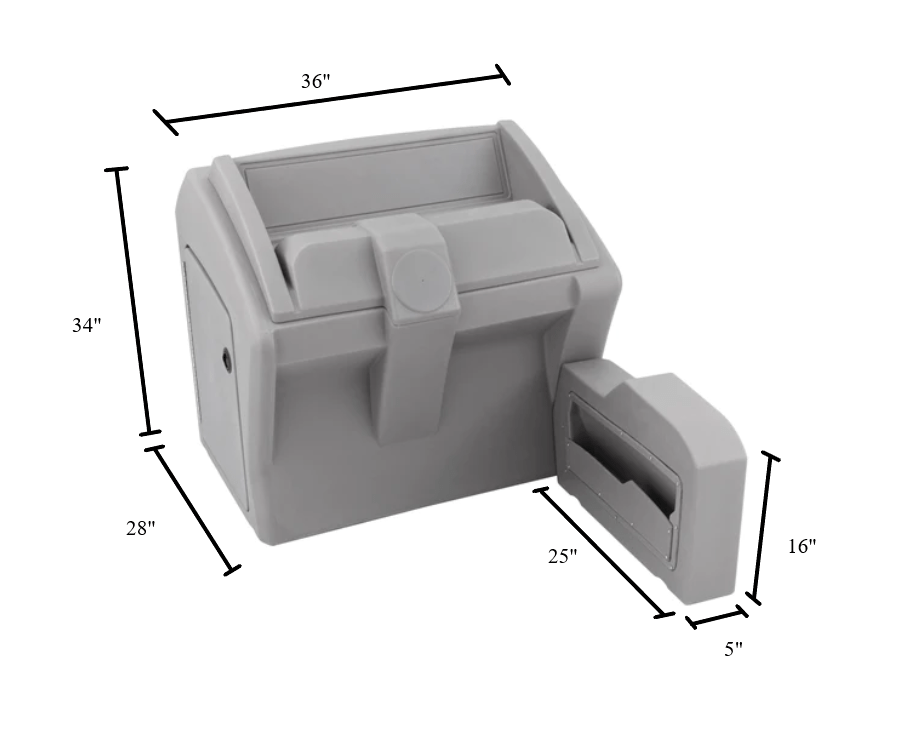

Dimensions:

Console

36" overall width

34" overall height

28" depth (without side storage )   48" total depth with side storage

Side Door opening:  16" wide by 19" tall

Steering wheel height: 48" (centered)

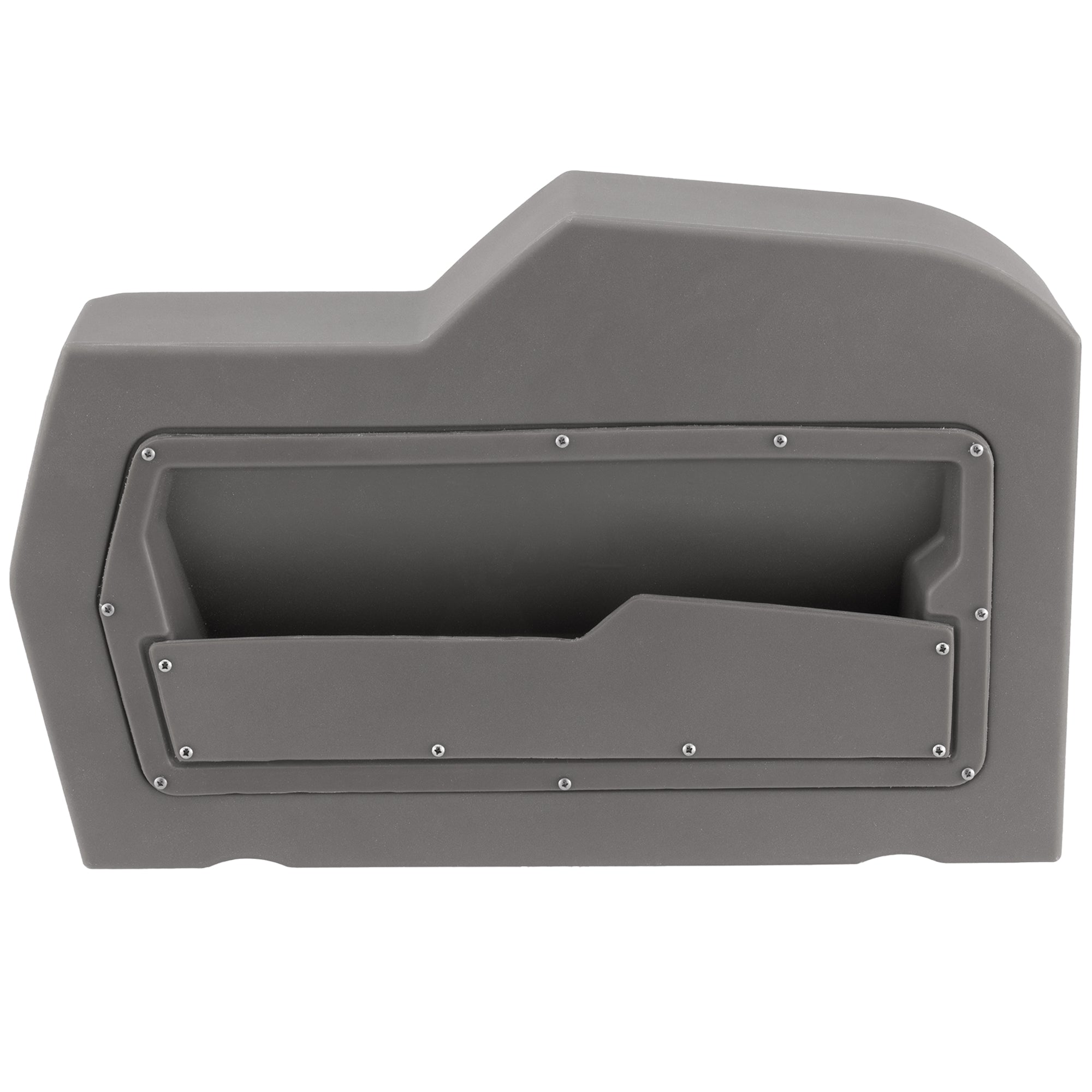

Side storage

5" overall width

16" overall height

25" depth

Instructions

1. Take the 1/4-20 Stud Bolts and insert them in the T-Nut inserts located on the underside of the Large Helm Top. NOTE: Make sure you do not twist the stud bolts more than 2 - 3 full rotations.
2. Place the top of the console on the base where the indent fits into the slots.
3. From the inside of the console, use the four (4) washers and four (4) wing nuts given to fasten the Large Helm Top to the Large Helm Base.

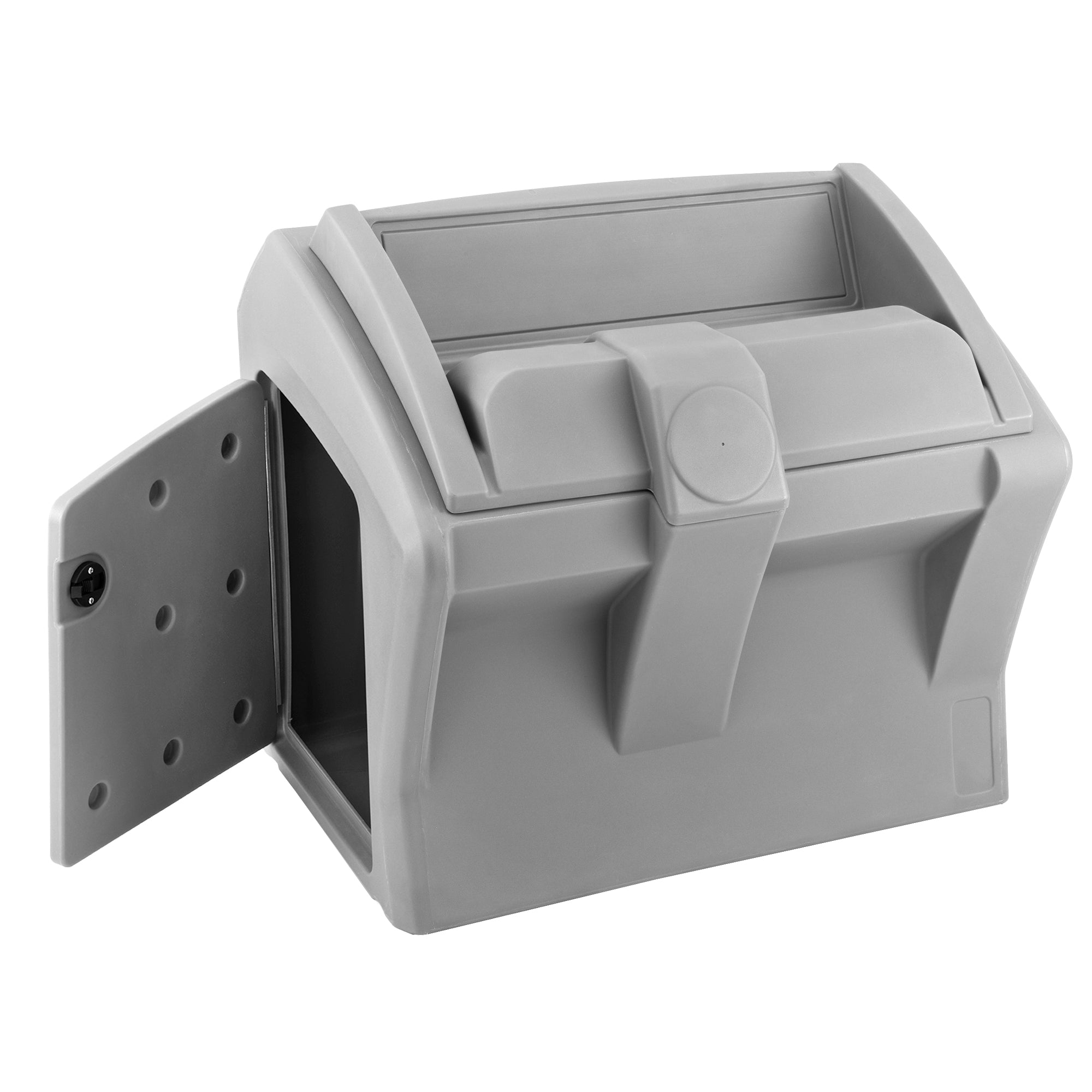

4. Once the Helm Top and the Helm Base are tightened, place the access door on with the three (3) Black Knobs to secure the door to the base.

Gauge Panel Instructions

Download Assembly PDF
